Sodium Chloride NaCl
Sodium Chloride, common rock salt, is one of the most useful materials for general purpose spectroscopic windows and applications where sensitivity to moisture is unimportant.
Products
Windows

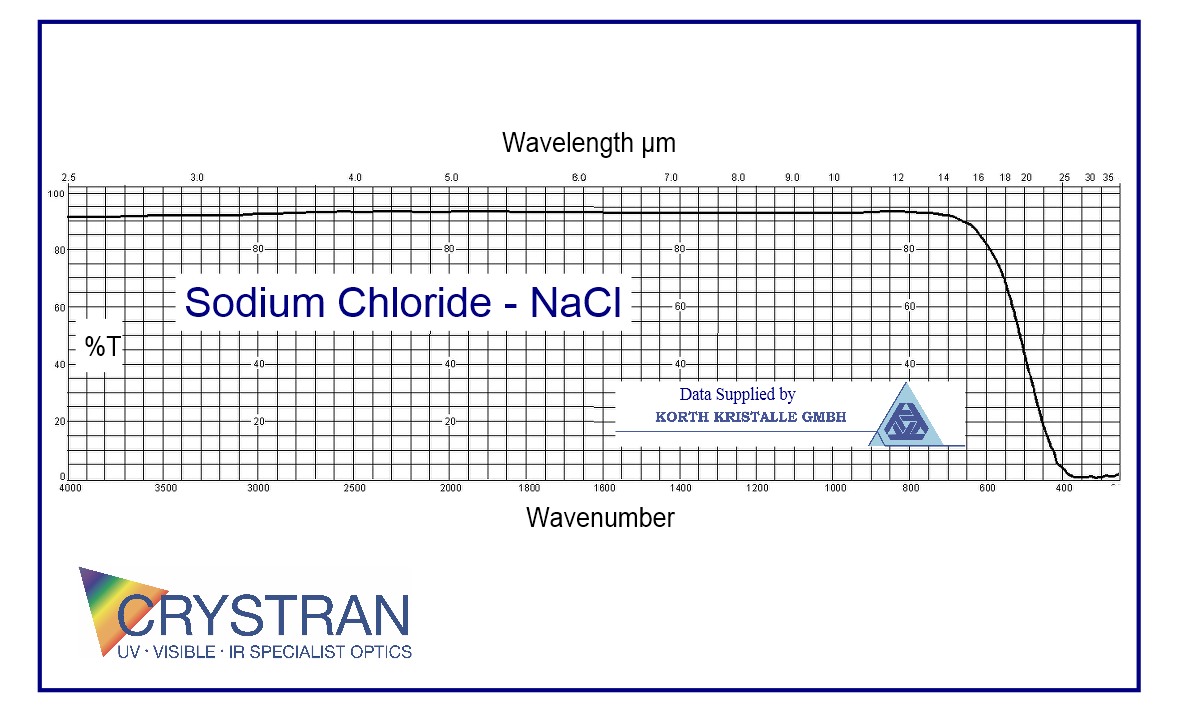

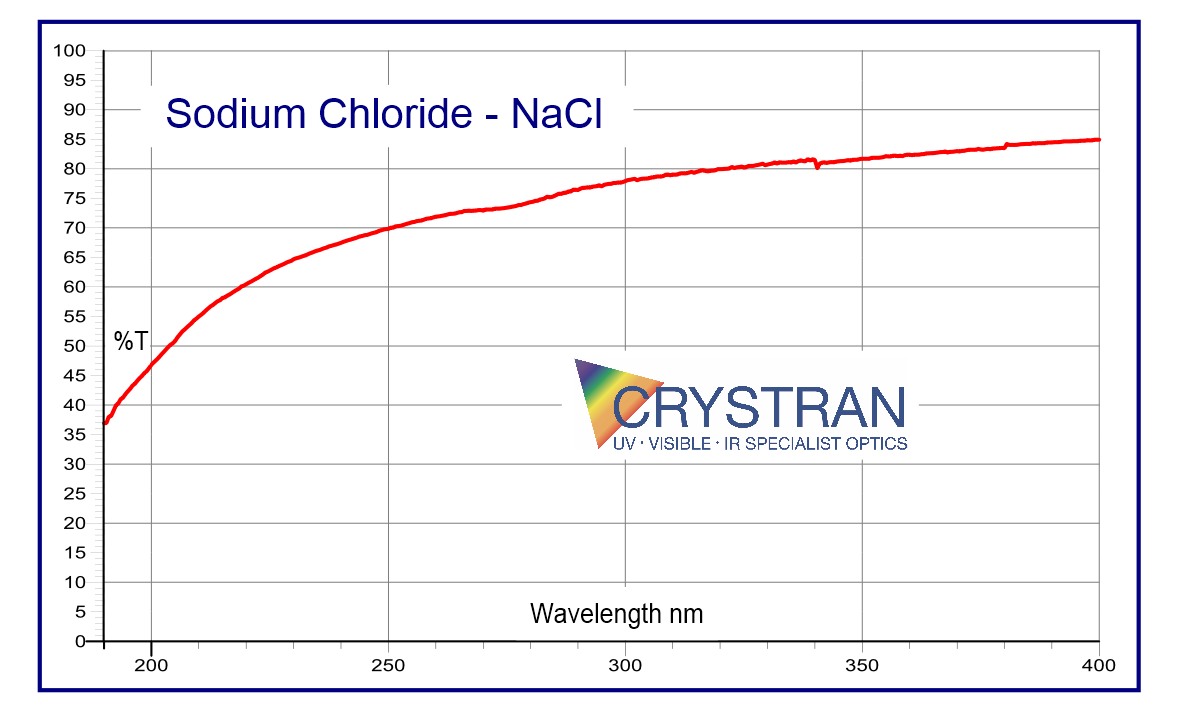

| Transmission Range | 0.2 to 15 μm |
| Refractive Index | 1.49065 at 10.6 μm |
| Reflection Loss | 7.5% at 10.6 μm (2 surfaces) |
| Absorption Coefficient | 7 x 10-6 cm-1 @ 10.6 μm |
| Reststrahlen Peak | 50.1 μm |
| dn/dT | -40.83 x 10-6/°C |
| dn/dμ | n/a |
| Density | 2.17 g/cc |
| Melting Point | 801°C |
| Thermal Conductivity | 6.5 W m-1 K-1 @ 273 K |
| Thermal Expansion | 44 x 10-6 K-1 |
| Hardness | Knoop 18.2 in with 200g indenter |
| Specific Heat Capacity | 854 J Kg-1 K-1 |
| Dielectric Constant | 5.9 at 1 MHz |
| Young's Modulus (E) | 39.98 GPa |
| Shear Modulus (G) | 12.61 GPa |
| Bulk Modulus (K) | 24.42 GPa |
| Elastic Coefficients | C11 = 48.5; C12 = 12.3; C44 = 12.61 |
| Apparent Elastic Limit | 3.9 MPa (560 psi) |
| Poisson Ratio | 0.252 |
| Solubility | 35.7 g/100 g water at 273°C |
| Molecular Weight | 58.45 |

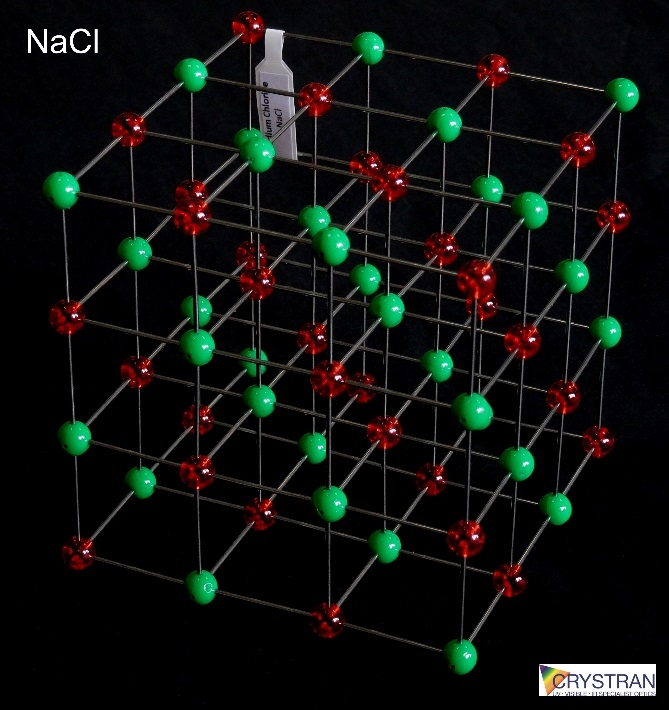

| Class/Structure | Cubic FCC, NaCl, Fm3m (#221), (100) cleavage |
| μm | No | μm | No | μm | No |
|---|---|---|---|---|---|
| 0.589 | 1.54427 | 2.074 | 1.52736 | 14.6 | 1.45572 |
| 0.640 | 1.54141 | 9.00 | 1.50100 | 16.0 | 1.4399 |
| 0.760 | 1.53682 | 9.50 | 1.49980 | 17.8 | 1.41649 |
| 0.884 | 1.53395 | 10.6 | 1.49065 | 19.8 | 1.38559 |
| 0.972 | 1.53253 | 11.4 | 1.48476 | 20.57 | 1.3735 |
| 1.054 | 1.53153 | 12.5 | 1.47568 | 22.3 | 1.3403 |
| 1.555 | 1.53815 | 13.5 | 1.46660 |
Sodium Chloride is produced in large ingots by the Kyropoulos growth method. Sodium Chloride cleaves easily. With care Sodium Chloride can be polished to a high standard under humidity controlled conditions
REFERENCES:
(1) H.H.Li, Absorption Coefficients, Int.J.Therm, V1, No. I, 1980
(2) Combes, et.al.; J.Opt. Soc. Am. V41, p215, 1951
